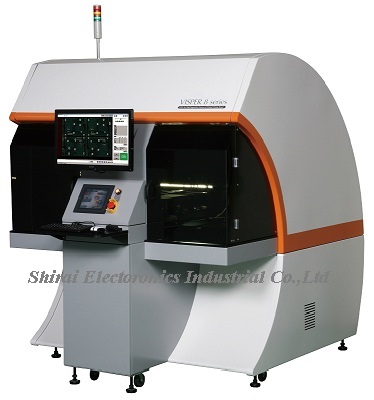

VISPER800FCZ

VISPER800FC

AVI for IC substrate & HDI P.W.B.

Eventually, real innovated VISPER is released with
integrally re-styled hardware design & intuitive interface software.



Higher detection capability
Software,which has been developed through a lot of experience of numerous type
of P.W.B., and clearer & sharper image captured by high-resolution system
with vacuum handling system,achieved higher detection capability for fine traced P.W.B
Software focused on its usability
By switching the master mode and operator mode,VISPER can be realized the
registration process smoother.
The latest software is equipped with many capable function for reducing the setup time.
Re-styled hardware
Compact machine size,even it's double-sided system.
Though,operation is simple by single monitor and touch panel for both sides
at the same time.

Dimension & Approx. weight
Dimension 1,550mm x 2,148mm x 2,050mm (WxHxD)
  (61inch x 84 5/8inch x 80 3/4inch)
Approx. weight 1,000kg (2,205lb)

Specification
Resolution
Applicable PWB size
 7μm / pixel ( 0.28mil / pixel )
 50mm x 50mm - 87.5mm x 250mm
  (2inch x 2inch - 3 3/8inch x 9 7/8inch)
 t=0.2mm~1.0mm (t =0.008 - 0.04inch)
Resolution
Applicable PWB size
 10μm / pixel ( 0.28mil / pixel )
 50mm x 50mm - 125mm x 250mm
  (2inch x 2inch - 4 7/8inch x 9 7/8inch)
 t=0.2mm~1.0mm (t =0.008 - 0.04inch)
Resolution
Applicable PWB size
 12.5μm / pixel ( 0.39mil / pixel )
 50mm x 50mm - 125mm x 250mm
  (2inch x 2inch - 4 7/8inch x 9 7/8inch)
 t=0.2mm~1.0mm (t =0.008 - 0.04inch)

【Attension】
This product is out of adaptation of CE-marking.
