VISPER710SLZ/SLWZ

VISPER710STG/SWTWG Demonstrates various abilities  such as ~ High Precision Inspection, Transport Stability, and Energy Saving.

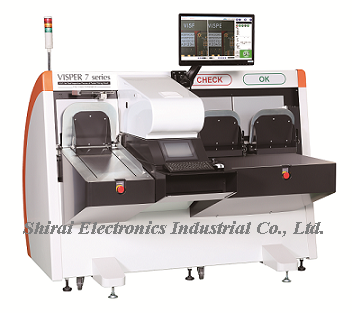

VISPER710SLG シライロゴ入り.png



Highest Quality
Automatic Double-sided Inspection Machine that combines Double-sided Simultaneous Imaging System and Vertical Transport.
Since the hardware reliability is Top-class standard in the world, VISPER series is being used in many countries.

User Friendly
Imaging range increased by 30% (300 × 360 ㎜), corresponding PWB is enhanced even more!

Eco Friendly

For environment (Energy Saving Mode)
LED will be automatically turned off when away from the scanning time macihine.



Dimension & Approx. weight
Dimension 1,895mm x 1,772mm x 1,719mm (WxHxD)
  (74 1/2inch x 69 3/4inch x 67 3/4inch)
Approx. weight 550kg (1,235lb)

VISPER710SLZ Specification
Resolution
Applicable PWB size
 25μm / pixel ( 0.99mil / pixel )
 50mm x 50mm - 300mm x 360mm
  (2inch x 2inch - 11 3/4inch x 14 1/8inch)
 t=0.4mm~1.6mm (t =0.016 - 0.063inch)
Resolution
Applicable PWB size
 35μm / pixel ( 1.38mil / pixel )
 50mm x 50mm - 250mm x 360mm
  (2inch x 2inch - 9 7/8inch x 14 1/8inch)
  t=0.4mm~1.6mm (t =0.016 - 0.063inch)

VISPER710SLWZ Specification
Resolution
Applicable PWB size
 18μm / pixel ( 0.71mil / pixel )
 50mm x 50mm - 250mm x 360mm
  (2inch x 2inch - 9 7/8inch x 14 1/8inch)
 t=0.4mm~1.6mm (t =0.016 - 0.063inch)
Resolution
Applicable PWB size
 20μm / pixel ( 0.78mil / pixel )
 50mm x 50mm - 280mm x 360mm
  (2inch x 2inch - 11inch x 14 1/8inch)
  t=0.4mm~1.6mm (t =0.016 - 0.063inch)

【Attention】
This machine is out of CE-marking adaptation.
Applicapable P.W.B size can be changed by reaolution and camera spec, but maximum applicapable size is normally 250mmx330mm.


Request a catalogue.
